Model: MT-FY
Working voltage:3.2V/12.8V
Battery type: lithium iron phosphate（LFP）
Lighting power: 20W/30W/40W

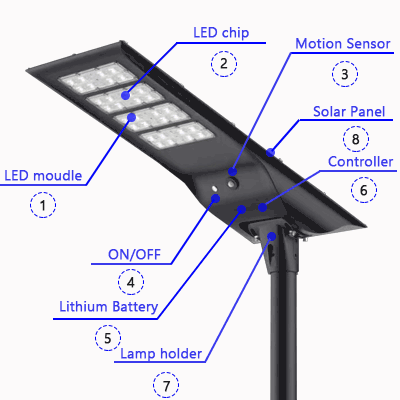

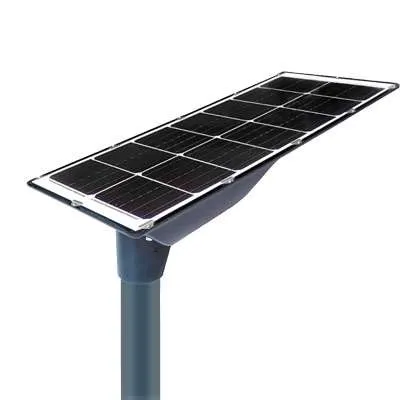

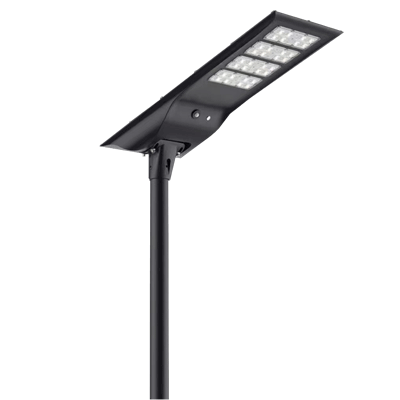

The Ares series integrates solar panels, lithium batteries, controllers, and light sources in one, which is convenient for transportation and easy to install.
Using LFP battery which prolong the lifetime and friendly to the environment.
Providing the option of motion sensor, which detects moving objects around the light, automatically adjusts the LED light output from full brightness to dimmer to save power and cost.

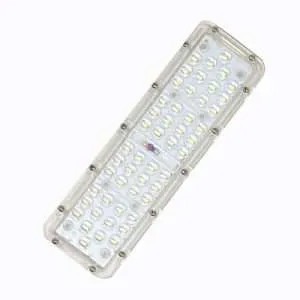

Using LED module, good heat dissipation, easy for maintenance

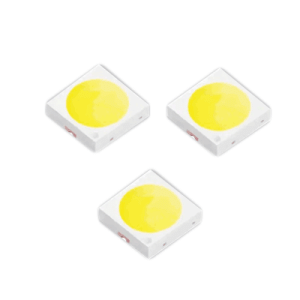

5050 SMD LED chips, super bright which can reach 200lm/W, high color rending index excellent heat emission
When a moving object approaches (32-39 feet), the light will automatically work at high brightness, and turn to dim when the object leaves to save power (30% power)

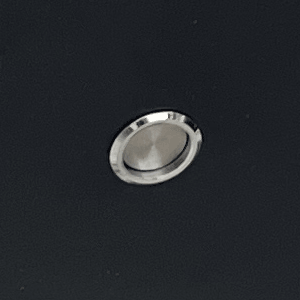

Turn off the switch during transportation or maintenance
Original branded LiFePo4(LFP battery) with cycle life 2500 above, lifetime can reach 10 years more, perfect high temperature safety performance

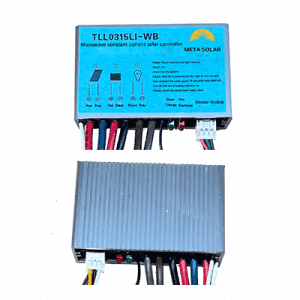

With high efficiency and low failure rate, IP68, constant current function, Overcharge and over discharge protection

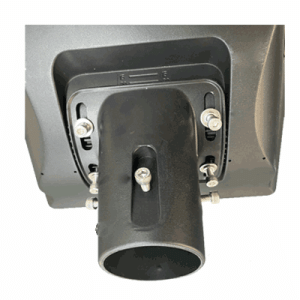

15-30 degree Adjustable, galvanized, anti-rust, high strength

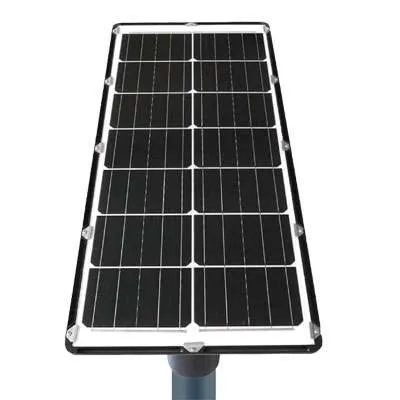

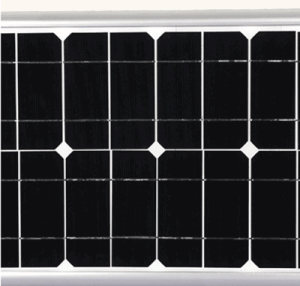

Conversation efficiency 20% above, lifespan more than 20 years
| Model No. | ARES-001 | ARES-002 | ARES-003 |
| Rated Power | 20W | 25W | 30W |
| System Voltage | DC3.2V | DC3.2V | DC3.2V |
| LiFePO4 Battery | 40AH | 40AH | 50AH |
| Solar Panel | Mono.45W | Mono.60W | Mono.70W |
| Light Source | 3030 | ||
| Light Distribution | Bat-Wing light distribution(150°×75°) | ||
| Light Efficiency | 130-160LMW | ||
| ColorTemperature | 3000K-6000K | ||
| CRI | ≥Ra70 | ||
| IP Rating | IP65 | ||
| Working Temperature | -10℃-+60℃ | ||
| LED Lifespan | 50000H-100000H | ||
| Controller | 15A20W | 15A20W | 20A30W |
| Mount Diameter | Φ76MM | ||
| Lamp Dimension | 361×697MM | 361×846MM | 361×1096MM |
| Lamp Weight | 6.45KG | 8.2KG | 9.15KG |
| Package Dimension (Sleeve not included) | 435×775×165MM | 432×925×165MM | 435×1175×165MM |
| Suggested Mount Height | 3-6M | 3-6M | 5-6M |
| Warranty | 3 Years | ||
