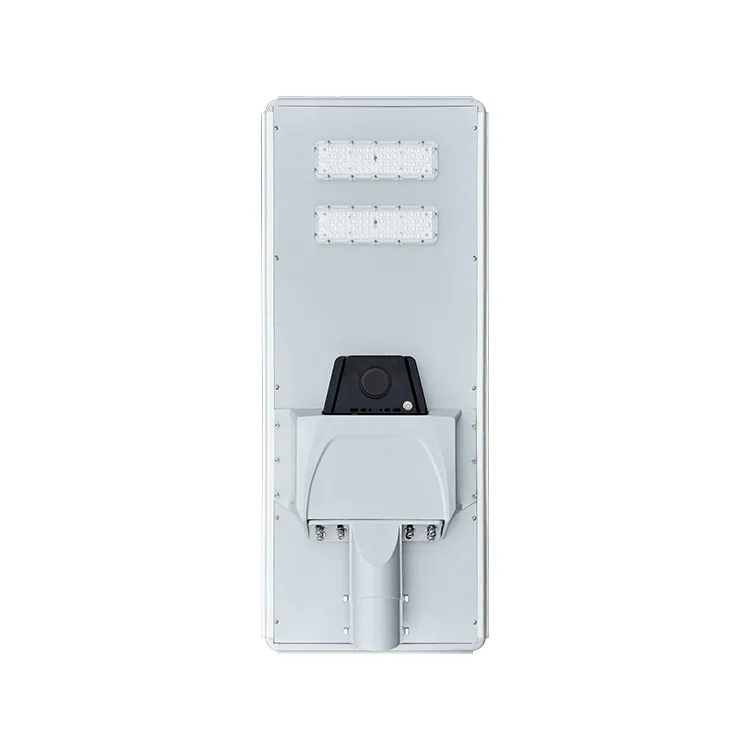

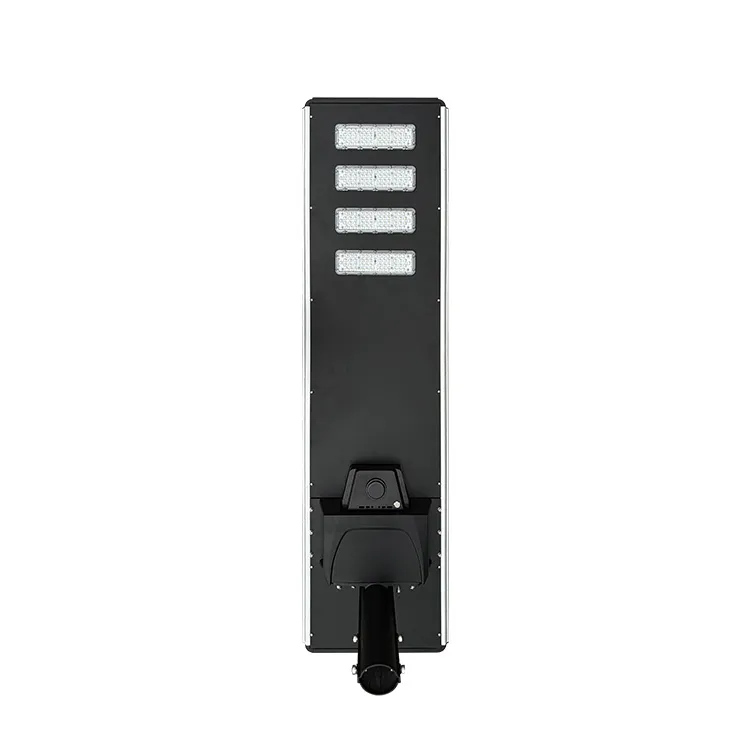

Model: LATTE
Working voltage: 3.2V/12.8V
Battery type: LiFePO4 Battery
Power: ≤30W & ≤40W
Suggested installation height: 4-8M
Features integrated high-efficiency solar panels that fully absorb light energy.
Equipped with multiple LED lights delivering high brightness and uniform illumination with wide coverage.
Includes smart sensing capabilities that automatically turn lights on/off or adjust brightness based on ambient light levels for enhanced energy savings.
When a moving object approaches (32-39 feet), the light will automatically work at high brightness, and turn to dim when the object leaves to save power (30% power)
Using LED module, good heat dissipation, easy for maintenance
Original branded LiFePo4(LFP battery) with cycle life 2000 above, lifetime can reach 10 years more, perfect high temperature safety performance
With high efficiency and low failure rate, IP65, constant current function, Overcharge and over discharge protection
Conversation efficiency 19% above, lifespan more than 10 years
| Model No. | LATTE-001A | LATTE-002A | LATTE-003A | LATTEI-001B | LATTE-002B | LATTE-003B |
| Rated Power | ≤30W | ≤30W | ≤40W | |||
| System Voltage | DC3.2V | DC12.8V | ||||
| LiFePO4 Battery | 50AH | 80AH | 96AH | 24AH | 36AH | 48AH |
| Solar Panel | Mono.70W/5V | Mono.95W/6V | Mono.115W/6V | Mono.75W/6V | Mono.95W/18V | Mono.120W/18V |
| Light Source | 3030 | |||||
| Light Distribution | Bat-Wing light distribution(150°×75°) | |||||
| Light Efficiency | 150-170LMW | |||||
| ColorTemperature | 3000K-6000K | |||||
| CRI | ≥Ra70 | |||||
| IP Rating | IP65 | |||||
| Working Temperature | -10℃-+60℃ | |||||
| LED Lifespan | 50000H-100000H | |||||
| Controller | 20A | 6A | 8A | |||
| Lamp Pipe Diameter | Φ 76MM | |||||
| Lamp Dimension | 1080*445*125MM | 1390*445*125MM | 1680*445*125MM | 1080*445*125MM | 1390*445*125MM | 1680*445*125MM |
| Lamp Weight (Sleeve included) | 10.65KG | 13.55KG | 15.26KG | 11.42KG | 14.45KG | 17.13KG |
| Container Weight | 12.65KG | 16.05KG | 17.82KG | 13.45KG | 16.95KG | 19.83KG |
| Suggested Mount Height | 4-6M | 4-8M | ||||
| Motion Sensor | Yes | |||||
| Warranty | 3 Years | |||||
