Model: LEGEND
Working voltage: 3.2V/12.8V
Battery type: lithium iron phosphate (LFP)
Lighting power: 30/40W(Customized)
Suggested installation height: 4-8M
1. High-power modular design supports 4–8m installation height, meeting diverse road lighting needs.
2. Equipped with 75W–120W mono solar panels and large-capacity batteries, it ensures efficient power generation and long-lasting performance even on rainy days.
3. 5050 high-brightness LED chips deliver 150–170 lm/W, combining superior brightness with energy savings.
4. With smart controllers, IP65 protection, and an all-in-one design, it offers reliable, durable, and cost-effective green lighting for roads, villages, and communities.
Using LED module, good heat dissipation, easy for maintenance.
When a moving object approaches (32-39 feet), the light will automatically work at high brightness, and turn to dim when the object leaves to save power (30% power).
Original branded LiFePo4(LFP battery) with cycle life 2500 above, lifetime can reach 10 years more, perfect high temperature safety performance
Controller With high efficiency and low failure rate, IP68, constant current function, Overcharge and over discharge protection

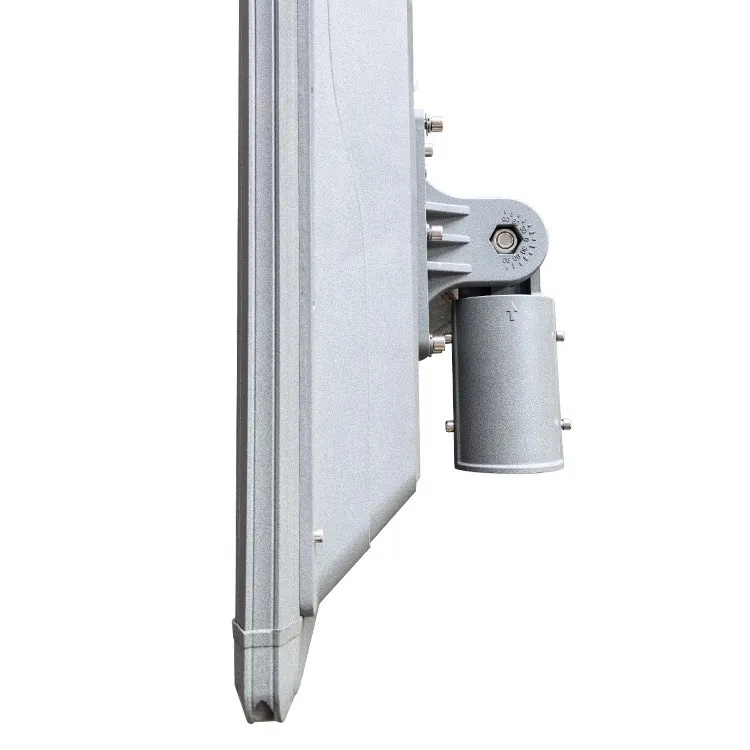

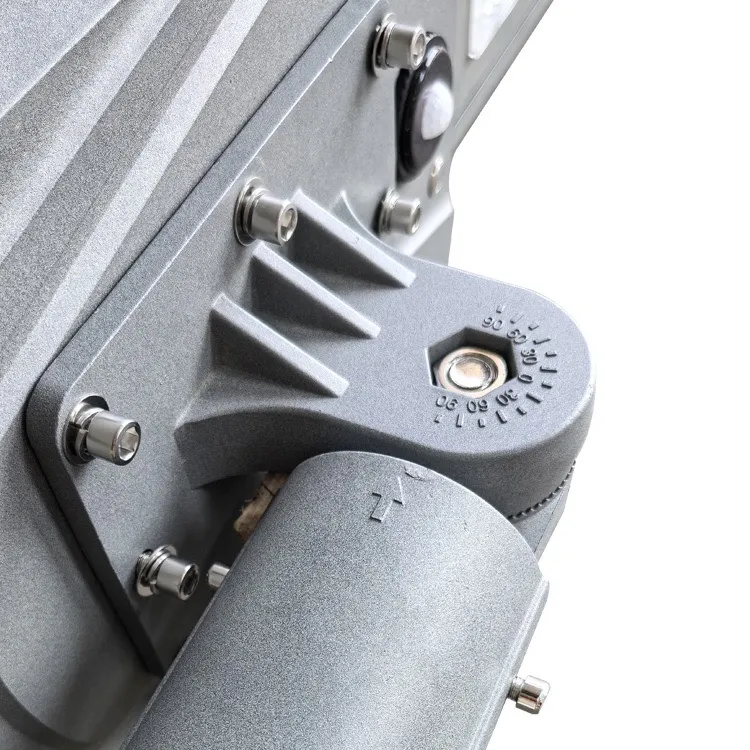

0-90 degree Adjustable, galvanized, anti-rust, high strength

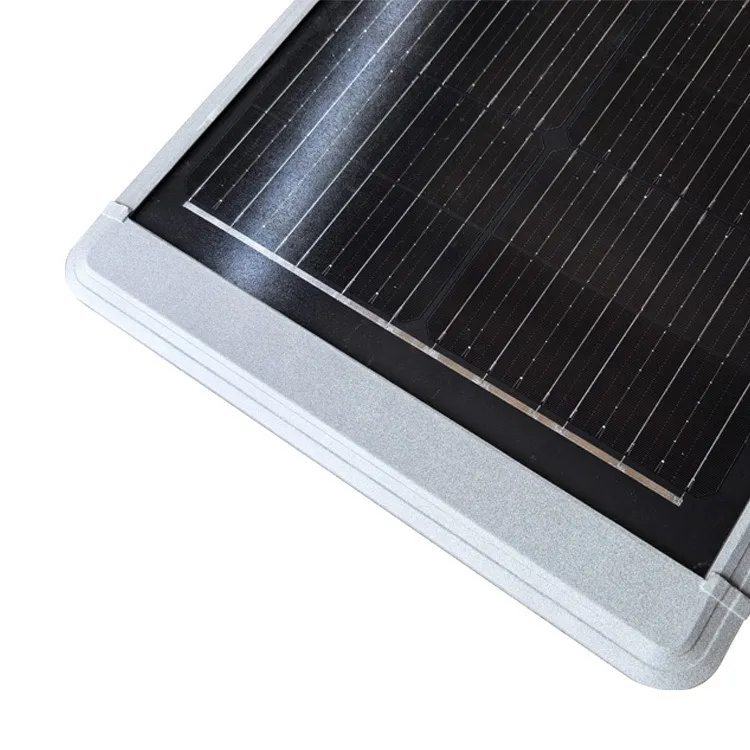

Conversation efficiency 20% above, lifespan more than 20 years
| System Voltage | DC3.2V | DC12.8V | ||||
| Model No. | LEGEND-001A | LEGEND-002A | LEGEND-003A | LEGEND-001B | LEGEND-002B | LEGEND-003B |
| Rated Power | ≤30W(Customized) | ≤40W(Customized) | ||||
| LiFePO4 Battery | 60AH | 72AH | 84AH | 36AH | 40AH | 48AH |
| Solar Panel | 75W | 105W | 115W | 80W | 105W | 120W |
| Light Source | 5050 | |||||
| Light Distribution | Bat-Wing light distribution(150°×75°) | |||||
| Light Efficiency | 150-170LMW | |||||
| ColorTemperature | 3000K-6000K | |||||
| CRI | ≥Ra70 | |||||
| IP Rating | IP65 | |||||
| Working Temperature | -10℃-+60℃ | |||||
| LED Lifespan | 50000H-100000H | |||||
| Controller | 20A30W | 8A40W | ||||
| Lamp Pipe Diameter | Φ76MM | |||||
| Lamp Dimension | 1225*445*125MM | 1525*445*125MM | 1710*445*125MM | 1225*445*125MM | 1525*445*125MM | 1710*445*125MM |
| Lamp Weight | 13.33kg | 15.34kg | 16.56kg | 14.99kg | 18.02kg | 18.72kg |
| Package Dimension (Sleeve not included) | 1410*490*170MM | 1730*490*170MM | 1930*490*170MM | 1410*490*170MM | 1730*490*170MM | 1930*490*170MM |
| Suggested MountHeight | 4-6M | 6-8M | 4-8M | |||
| Warranty | 3 Years | |||||
