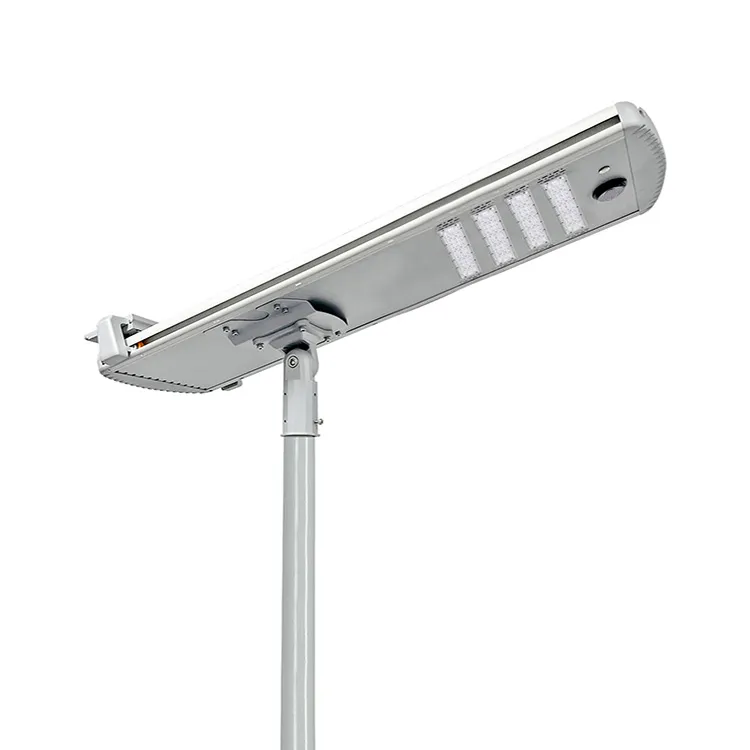

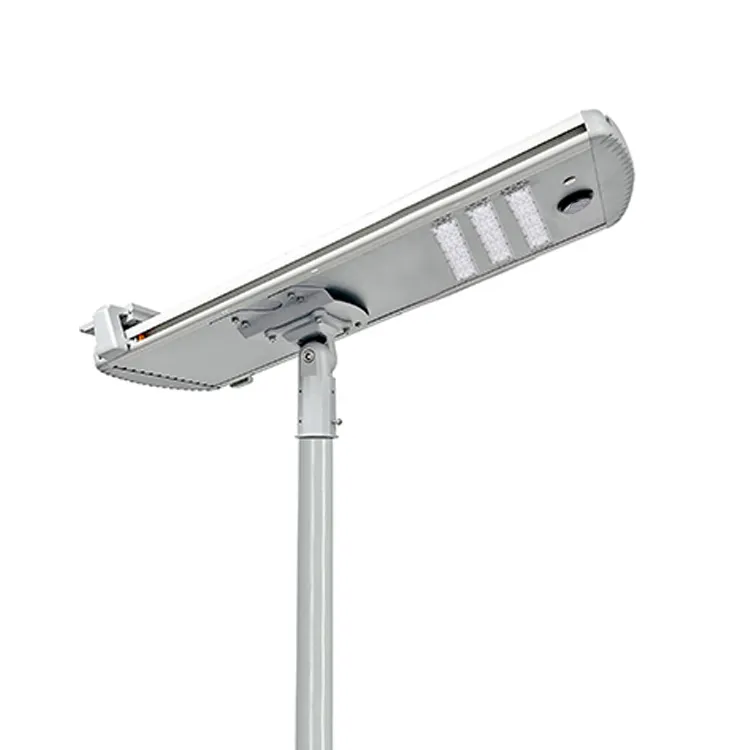

LYRA

Integrated/all in one (AIO) solar street lights

Model: LYRA
Working voltage: 3.2V/12.8V
Battery type: lithium iron phosphate (LFP)
Lighting power: 20/30/40W(Customized)
Suggested installation height: 4-8M

Product Feature

1. The combination of high-efficiency monocrystalline solar panels and high-capacity batteries ensures up to 2-3 days of stable lighting, even on cloudy or rainy days.

2. Equipped with high-lumen LED beads that are energy-saving and deliver outstanding brightness, with selectable color temperatures to suit various lighting scenarios.

3. Features intelligent light-sensing control for automatic on/off and dimming, along with multiple circuit protections for safety, reliability, and durability.

4. The all-in-one design enables easy installation with no wiring required, making it ideal for a wide range of outdoor applications, including yards, parks, and roads.

Components & Details

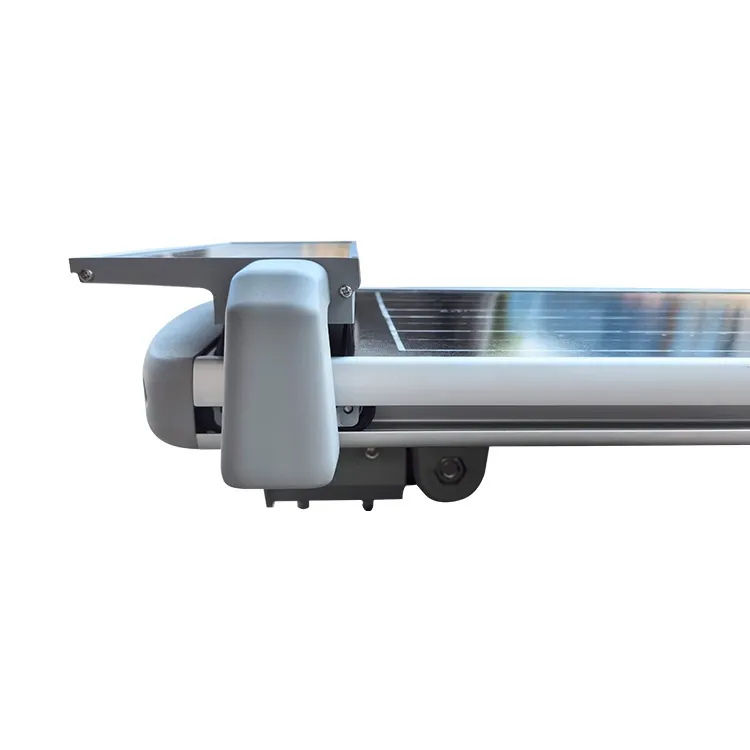

01 Self-cleaning System for Solar Panels

The system features timed automatic dust removal, effectively cleaning solar panel surfaces to maintain high-efficiency power generation, save water and labor, and improve energy conversion rates. The default cleaning frequency is set to three times each in the morning and evening.

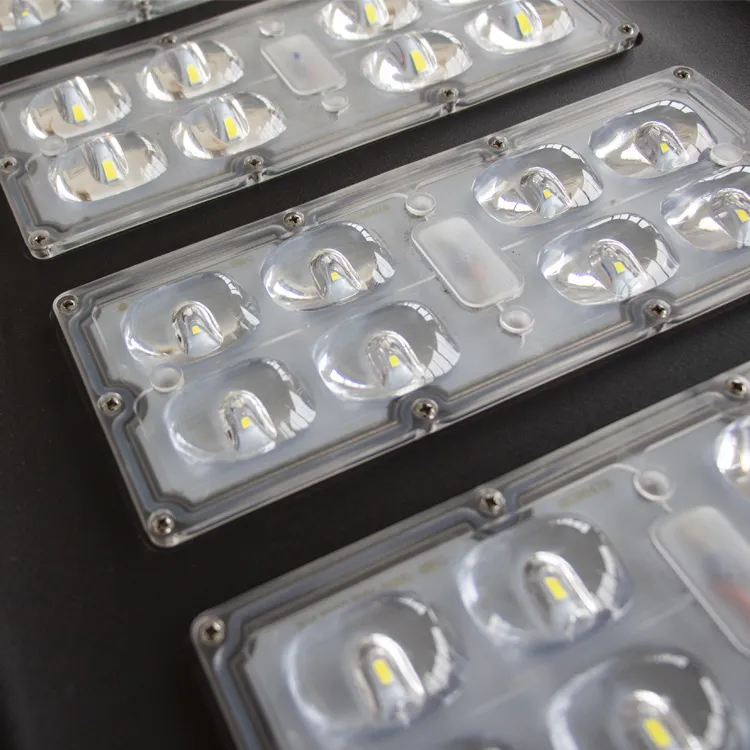

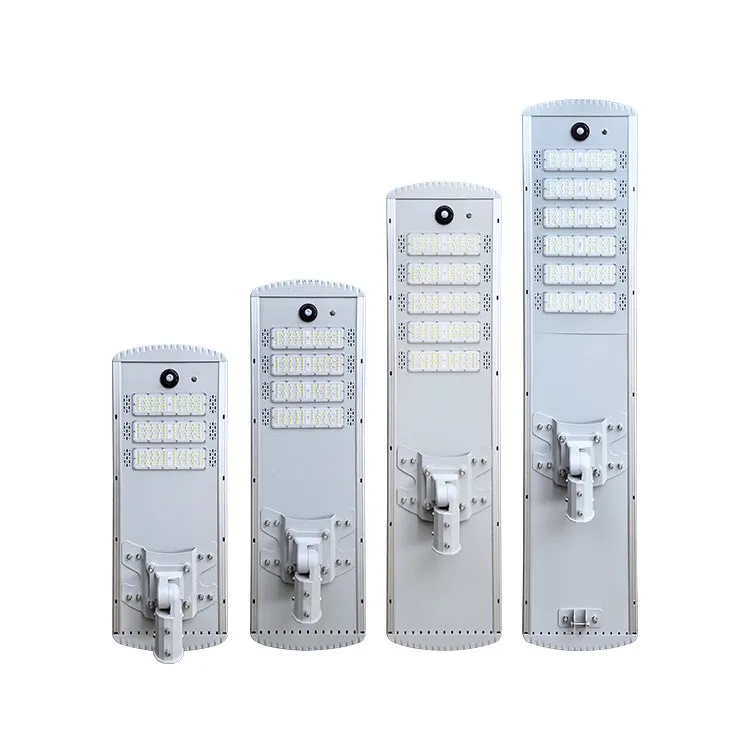

02 LED Module

Rotatable LED module to meet different installation needs.

03 PIR Motion Sensor (Optional)

When a moving object approaches (32-39 feet), the light will automatically work at high brightness, and turn to dim when the object leaves to save power (30% power).

04 Lithium Battery

Original branded LiFePo4(LFP battery) with cycle life 2500 above, lifetime can reach 10 years more, perfect high temperature safety performance

04 Controller

Controller With high efficiency and low failure rate, IP68, constant current function, Overcharge and over discharge protection

05 Lamp Holder

0-90 degree Adjustable, galvanized, anti-rust, high strength

06 Mono/Poly Crystalline Solar Panel

Conversation efficiency 20% above, lifespan more than 20 years

Specifications

System Voltage	DC3.2V				DC12.8V
Model No.	LYRA-001A	LYRA-002A	LYRA-003A	LYRA-004A	LYRA-001B	LYRA-002B	LYRA-003B	LYRA-004B
Rated Power	≤20W(Customized)		≤30W(Customized)		≤30W(Customized)		≤40W(Customized)
LiFePO4 Battery	36AH	48AH	60AH	72AH	24AH	24AH	36AH	48AH
Solar Panel	40W	60W	80W	105W	45W	60W	80W	105W
Light Source	5050
Light Distribution	Bat-Wing light distribution(150°×75°)
Light Efficiency	150-170LMW
ColorTemperature	3000K-6000K
CRI	≥Ra70
IP Rating	IP65
Working Temperature	-10℃-+60℃
LED Lifespan	50000H-100000H
Controller	15A20W		20A30W		6A30W		8A40W
Lamp Pipe Diameter	Φ70MM
Lamp Dimension	995452225MM	1235452225MM	1542452225MM	1862452225MM	995452225MM	1235452225MM	1542452225MM	1862452225MM
Lamp Weight	14.07kg	15.79kg	18.25kg	20.39kg	15.23kg	16.69kg	19.67kg	22.78kg
Package Dimension (Sleeve not included)	1060475245MM	1300475245MM	1610475245MM	1930475245MM	1060475245MM	1300475245MM	1610475245MM	1930475245MM
Suggested MountHeight	4-6M			6-8M	4-8M
Warranty	3 Years

LYRA

Product Feature

Components & Details

Specifications

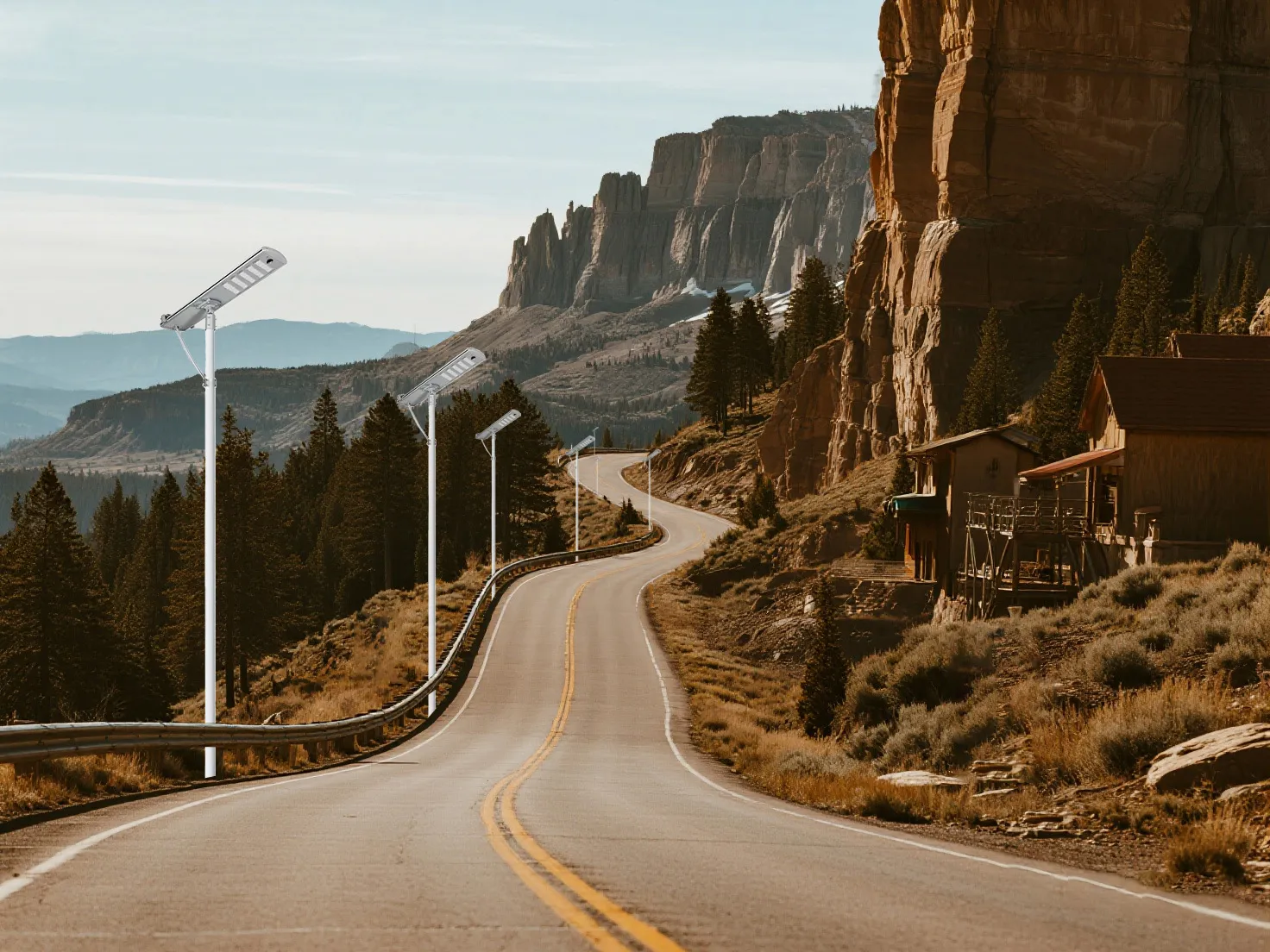

Application​ of Lyra
