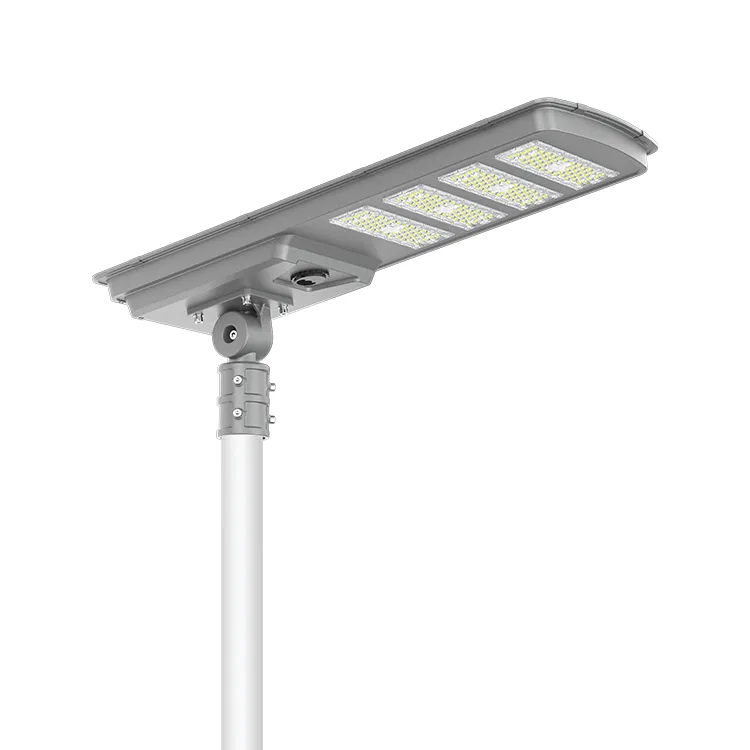

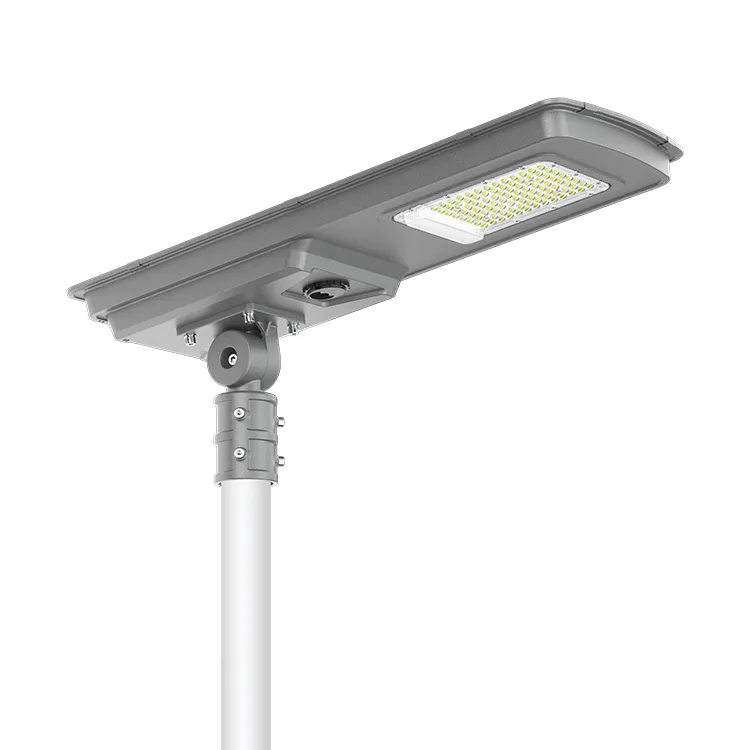

Model: VOYAGER
Working voltage: 3.2V
Battery type: lithium iron phosphate (LFP)
Lighting power: ≤20W(Customized)
Suggested installation height: 4-6M

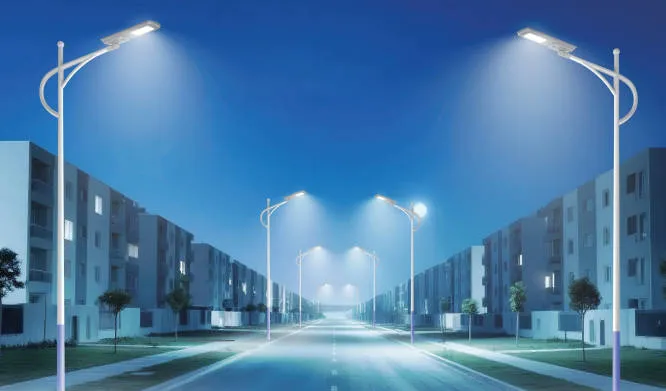

Coverage efficiency is enhanced, making it particularly suitable for scenarios such as two-way lanes, narrow roads, and campus pathways, thereby eliminating “dark zones between light poles.”
This achieves the comprehensive advantages of fewer poles, wider coverage, lower energy consumption, and a superior experience.

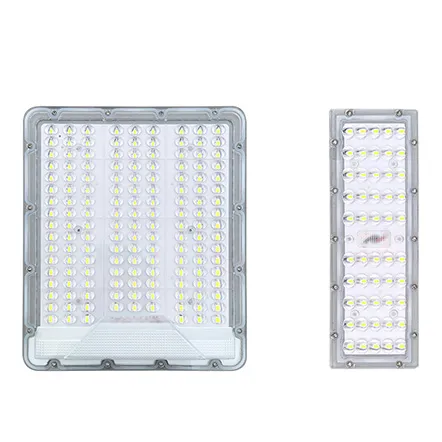

Using LED modules, good heat dissipation, easy for maintenance. 2 different models to be choosed.

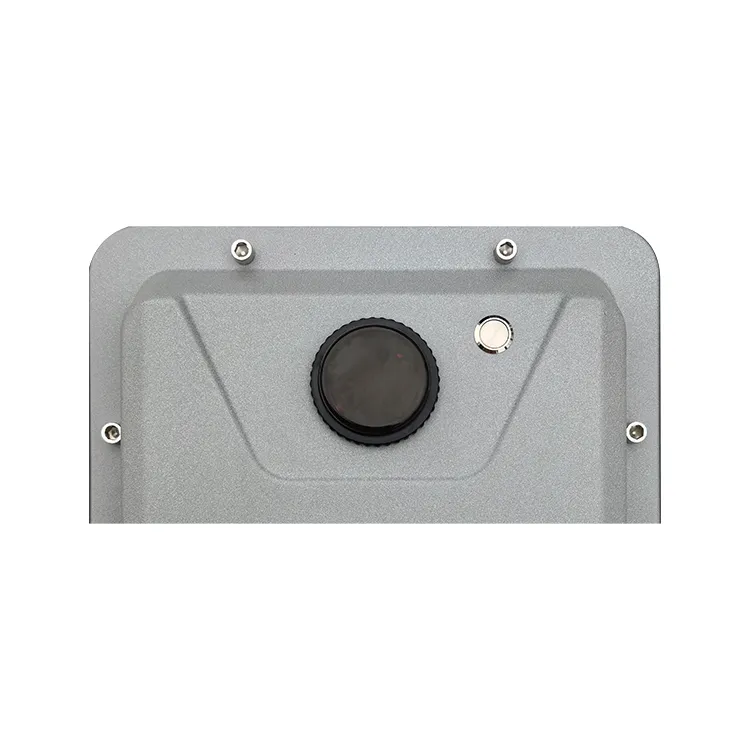

When a moving object approaches (32-39 feet), the light will automatically work at high brightness, and turn to dim when the object leaves to save power (30% power).
Original branded LiFePo4(LFP battery) with cycle life 2500 above, lifetime can reach 10 years more, perfect high temperature safety performance
Controller With high efficiency and low failure rate, IP68, constant current function, Overcharge and over discharge protection
Conversation efficiency 20% above, lifespan more than 20 years
| System Voltage | DC3.2V | |||
| Model No. | VOYAGER | |||
| Rated Power | ≤20W(Customized) | |||
| LiFePO4 Battery | 50AH | 80AH | ||
| Solar Panel | 60W | 75W | ||
| Light Source | 5054 | |||
| Light Distribution | Bat-Wing light distribution(150°×75°) | |||
| Light Efficiency | 140-160LMW | |||
| ColorTemperature | 3000K-6000K | |||
| CRI | ≥Ra70 | |||
| IP Rating | IP65 | |||
| Working Temperature | -10℃-+60℃ | |||
| LED Lifespan | 50000H-100000H | |||
| Controller | 15A | |||
| Lamp Pipe Diameter | Φ60MM | |||
| Lamp Dimension | 910*400*175MM | 1168*400*175MM | ||
| Lamp Weight | 9.75kg | 12.55kg | ||
| Package Dimension | 1060*475*245MM | 1345*475*245MM | ||
| Suggested MountHeight | 4-6M | |||
| Warranty | 3 Years | |||
